Debris Flow and Mudflow Warning System in Cameron Highlands

Prediction of disaster occurrence or various standards for warning and evacuation are shown by a single indicator such as rainfall. All real-time rainfall data (from a telemetry unit) are available at DID in the existing online server which is in placed at DID headquarters. The rainfall records in small time-steps or duration (i.e. 1 minute to an hour) are easily extracted.

The DMFWS in Cameron Highlands and any highlands is possible to be developed by using a single indicator, rainfall. It is automatically transmitted from remote telemetry unit (RTU) to DID Headquarters which will be automatically processed and analysed to give the landslide forecast and warning.

The warranted rainfall (Rw) is a cumulative rainfall that takes into account the effect of an antecedent rainfall. In general, debris flow occurs under the influence of not only debris flow causing rainfall but also antecedent rainfall. In the following figure 1, the standard line indicating the standard rainfall for warning is called the "Warning Line (WL)" and the standard rainfall for evacuation is called the "Evacuation Line (EL)". The upper right side of the boundary line is the unsafe zone where debris flow may occur and the lower left side of the line is the safe zone where a debris flow may not occur. This boundary line is called "Critical Line (CL)". The WL and EL are set in consideration of an estimated rainfall during the spare hours (forecasted rainfall) and the critical line (CL).

Figure1

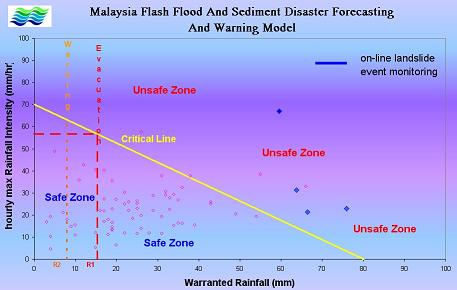

Figure 1: Shows the Model of DMFWS is ready to be activated and run the model.

The snake line is the line that shows the changes of two rainfall indices with time, as seen in Figure 2 . In this figure, the snake line depicts at an interval of one hour. The warranted rainfall derives by the addition of the antecedent working rainfall to the continuous rainfall. The snake line in the figure always goes upward relative to the abscissa during the period of rain. As a result, if moderate amount of rainfall continuous for fall for a long time or during a prolong rainfall event, the snake line will still be possible to exceed the WL and progressively proceeds to the EL of exceeded period will drag on. This causes a problem especially when attempting to cancel or issue a warning or an evacuation instruction, since the affected people would not like to be evacuated for prolong a period of time.

Figure2

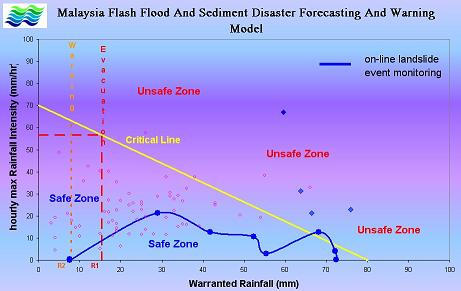

Figure 2: The model activated and produced On-Line Monitoring or a Snake Line in blue colour
